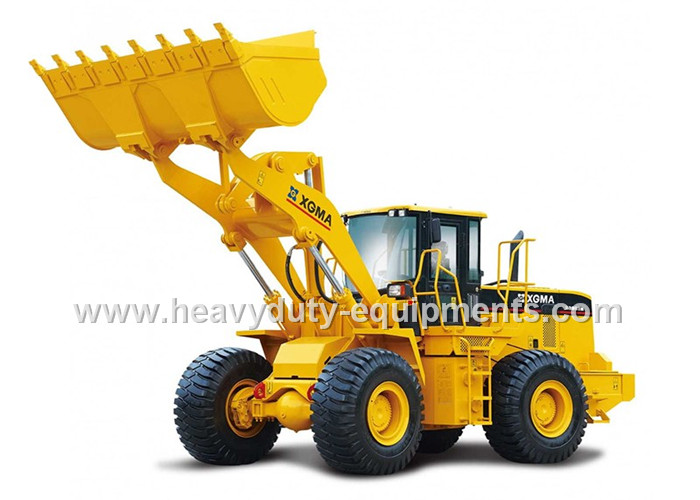

Wheeled Front End Loader 4M³ Bucket , 175kN Breakout Force Payloader Machine

Name: Wheeled Front End Loader 4M Bucket 175kN Breakout Force Payloader Machine
Brand: SINOMTP
Price: 1 USD

Brand Name : SINOMTP

Model Number : XG962H

Certification : ISO/CCC/BV

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Supply Ability : 100 units per month

Delivery Time : 35 days after payment

Packaging Details : NUDE

Engine : Shangchai SC11CB240.1G2B1

Bucket Capacity ( m3) : 4

Rated Load (kg) : 6000

Cycle Time (s) : ≤10.5

Max Breakout Force (KN) : 175

Cooling/Heating System : Air Conditioner

Contact Now

Wheeled Front End Loader 4M³ Bucket , 175kN Breakout Force Payloader Machine

Item	XG962H	Engine	Shangchai SC11CB240.1G2B1
Max. Torque(N.m)	≥1000	Bucket Capacity ( m3)	4
Max. Gradeability (°)	28-30	Rated Load (kg)	6000
Dump reach (mm)	≥1330	Dumping clearance at full lift (mm)	≥3340
Working Arm	Standard	Cycle Time (s)	≤10.5
Lifting time of lift arm (s)	≤6.5	Min Turning Radius (mm)	7470
Discharge angle (°)	≤45	Max Breakout Force (KN)	175
Cab	Standard	Dimension (LWH) (mm)	882031453465
Cooling/Heating System	Air Conditioner	Operating Weight (kg)	4850
Quick Coupler	Yes	Attachment	Optional

Description:

With the detachable seal ring with the patented technology for upper and lower pins of the bucket, the hinge pin can be effectively protected; its service life can be extended, and the maintenance and replacement can be convenient.

Advantage:

1. ZF WG200 electro hydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.

2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.

3. Z-type connecting rod features large breakout force and high working efficiency.

4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. Rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.

Application:

Wheel loader is mainly used in mine engineering of shoveling and loading the ore.
