Home > Diesel Powered Forklift >

Warehouses Forklift Pallet Truck Freely Adjusted Seat 20000Kg Dead Weight

Shandong Sinomtp Construction Equipment Company Limited
Contact Now

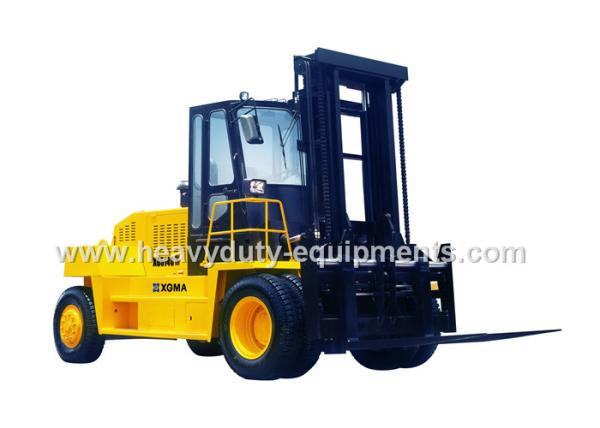

Warehouses Forklift Pallet Truck Freely Adjusted Seat 20000Kg Dead Weight

  • 1
  • 2

Brand Name : SINOMTP

Model Number : XG5140

Certification : ISO/CCC/BV

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 500 units per month

Delivery Time : 25 working days after received payment

Packaging Details : Nude, but with wax sprayed.

Model : XG5140

Rated lifting capacity : 14000kg

Load Center Distance : 600mm

Max. Lifting Height : 3500mm

Minimum Ground Clearance : 250mm

Engine Rated Power/ Speed : 125/2200 kw/r • p • m

Contact Now

Warehouses Forklift Pallet Truck Freely Adjusted Seat 20000Kg Dead Weight

Specification:

Product XG5140 Max. Lifting Height(mm) 3500
Rated Lifting Capacity(kg) 14000 Free Lifting Height(mm) 180
Deadweight(kg) 20000 Minimum Ground Clearance(mm) 250
Fork: L x W x H(mm) 1800x180x90 Track (Front/rear)(mm) 2060/2330
Minimum Turning Radius(mm) 5800 Wheelbase(mm) 3800
Overall Dimensions(LxBxH)(mm) 7360x2750x3600 Front tyre 4-12.00-24/18PR
Travel Speed: Forward 1-2/Backward (km/h) 10-25/12.5 Rear tyre 2-12.00-20/16PR
Gradeability (%) 20 Engine Model D6114ZG9B
Load Center Distance(mm) 600 Engine Rated Power/ Speed (kw/r • p • m)) 125/2200
Tilt Angle of Mast (F/B)( °) 6° /12°

Engine

Max. Torque Speed (N • m/r • p • m)

650/1400

Fully-loaded Lifting Speed (mm/s) 300 Engine Fuel Consumption Rate (g/kw.h) 228

Description:

Has heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.

Application:

Widely used in short distance transportation as well as loading unloading, and piling goods at warehouses and industrial and mining companies, port, wharf, station, warehouse.

Advantage:

1. Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability

2. The gearbox and torque converter are of reliable quality and stable performance.

3. SINOMTP-140 forklift can be equipped with optional lateral displacement function to facilitate piling during the operation.

4. High strength solid steel Gantry fork.
